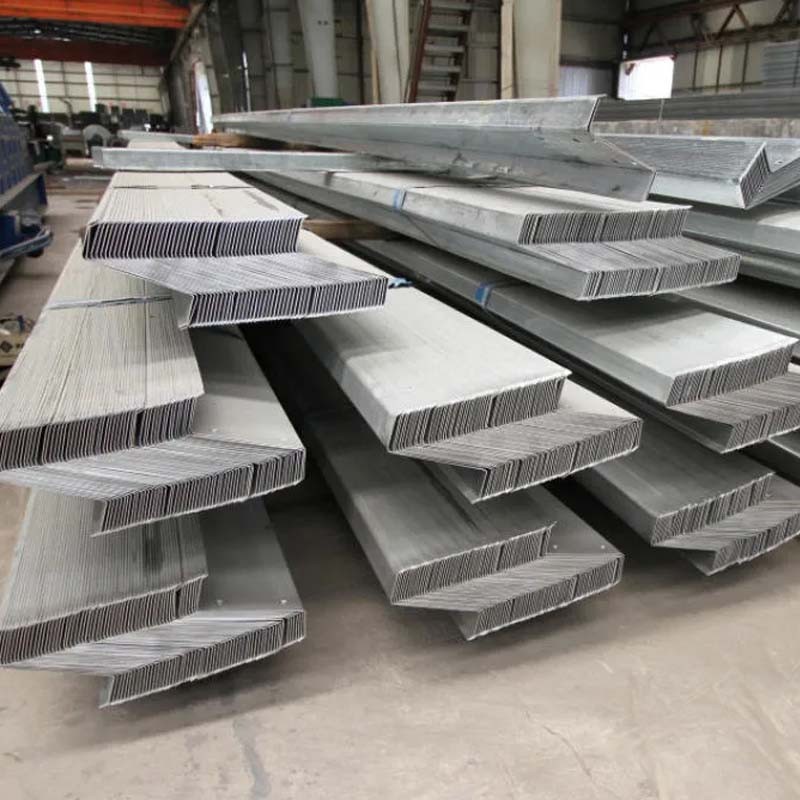

Z shaped steel

Z-shaped steel is a common cold-formed thin-walled steel, the thickness is generally between 1.6-3.0mm, and the section height is mostly between 120-350mm. The processing material is hot rolled (painted), galvanized. The processing standard shall be implemented according to GB50018-2002. Z-shaped steel is usually used in large steel structure workshops. The processing length and hole are produced according to processing requirements.

Features and advantages of Z-shaped steel:

1. Advantages in strength and rigidity: Z-shaped steel has higher strength and rigidity than ordinary steel due to the double-rib reinforced structure, and can withstand greater loads and external forces. Its reasonably designed cross-sectional shape can effectively increase the bending rigidity of the steel, improve the overall stability, and provide a more stable and safe support for industrial buildings.

2. Light weight and strong ductility: Compared with traditional steel, Z-shaped steel has a lighter weight, which is convenient for handling and installation. At the same time, Z-shaped steel also has good ductility and can exert its good deformation ability when subjected to external forces, which is beneficial to resist damage from natural disasters such as earthquakes and improve the safety of industrial buildings.

3. Flexible shape and high customizability: Z-shaped steel can be customized according to different usage requirements during the manufacturing process, which can meet the requirements of various complex structures and provide engineering designers with greater creative space. Whether it is maintenance, reinforcement, reconstruction or new construction, Z-shaped steel can be flexibly applied according to needs to meet the requirements of different projects.

4. Environmental protection and energy saving: Z-shaped steel adopts cold bending process in the manufacturing process, which reduces energy consumption and environmental pollution. Compared with traditional steel, Z-shaped steel can also achieve more economical resource utilization and reduce waste of raw materials. At the same time, due to its light weight, it can reduce the self-weight of the building structure, reducing building maintenance and operating costs.

Application of Z-shaped steel in industrial field

1. Construction field: As a structural component, Z-shaped steel is widely used in the construction field and is used to construct large industrial plants, stadiums, bridges, high-rise buildings, etc. Its excellent load-bearing performance and stability provide a safe and solid framework for the building.

2. Bridge engineering: Due to its high strength and stiffness, Z-shaped steel is often used to make bridge main beams and bridge decks. It can withstand a large amount of load and traffic pressure, ensuring the stability, durability and safety of the bridge.

3. Ship manufacturing: Due to its high strength and light weight, Z-shaped steel is an ideal hull structure material in ship manufacturing, which can meet the ship's needs for structural strength and weight reduction.

4. Machinery manufacturing: Z-shaped steel is also widely used in the field of machinery manufacturing, such as making fixtures, workbenches, equipment brackets, etc. It can provide stable support and load-bearing to ensure the normal operation of mechanical equipment.

As a high-quality material, Z-shaped steel has the advantages of high strength, stiffness and lightweight. Its wide application in the industrial field provides safe, stable and energy-saving solutions for engineering construction. I believe that in the future development, Z-shaped steel will continue to play an important role in the industrial field and create a better future for us.

Chinese standard:

General requirements of cold forming steel sections
This standard specifies the ordering content, classification and code, size, shape, weight and allowable deviations, technical requirements, test methods, acceptance rules, packaging, marking and quality certificates of cold-formed steel. This standard applies to cold-formed cold-rolled, hot-rolled or coated (coated) steel plates and strips produced on continuous roller cold bending units.

British Standard:

BS EN 10025-2 is a standard published by the European Committee for Standardization covering technical delivery conditions for hot rolled non-alloy structural steels.

American standard:

Z-shaped steel is usually specified according to ASTM A6/A6M standard, which covers general hot-rolled structural steel technical specifications, which includes Z-shaped members.

Japanese standard:

Z-shaped steel is usually specified according to JIS G 3192 standard. JIS G 3192 specifies requirements for dimensions, mass, shape, weight, and tolerances of various materials such as hot-rolled stainless steel, aluminum, and steel, including Z-shaped members.

The wall thickness of cold-formed thin-walled steel structural members should not be greater than 6mm, nor should it be less than 1.5mm (except for profiled steel plates), and the wall thickness of main load-bearing structural members should not be less than 2mm.

Length and tolerance

Section steel usually has a length of 4 000 mm to 16 000 mm. After being specified in the contract by both the supplier and the buyer, section steel with a length exceeding the above specified length can also be supplied.

When the section steel is delivered according to the fixed length or multiple length, it shall be indicated in the contract.  If the fixed length accuracy is not specified in the contract, it shall be delivered in ordinary fixed length.

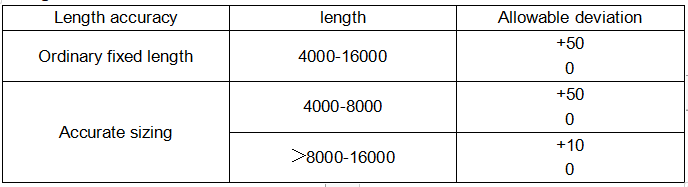

Length tolerance

The bending degree of section steel should not be greater than 2 mm per meter, and the total bending degree should not be greater than 0.2% of the total length.
The concavity and convexity of the flat part of the section steel shall not exceed 0.6% of the side length, but shall be at least 0.4 mm.
