Stone-coated metal roofing tile is a new roofing material, which is based on a highly corrosion-resistant Al-Zn plate, high-quality waterproof acrylic resin as adhesive, and high weathering of natural stone particles or inorganic color pigments for the dyeing of natural stone surfaces. It is one of creative, complex, environment-friendly high-tech products.

 Stone-coated metal roofing tile not only has the natural, deep, and excellent decorative properties of traditional clay tile but also has the light, strong, and durable performance of modern metal tile. It is the main trend in the development of international advanced roofing materials.

 CSMC will introduce and display the relevant content of colored stone metal tiles, especially the appearance, shape, and specifications of colored stone metal tiles, to help customers have a more comprehensive understanding of colored stone tiles.

 Colored stone metal tile is a high-performance, durable, and beautiful roofing material. It uses galvanized steel sheet or aluminum-zinc steel sheet as the base material. It comprises an Anti-Corrosion Layer, Epoxy or Polyester Coating, Protective Coat, and Clear Acrylic Coating.

The multi-layer structure design of the colored stone metal tile makes it excellent waterproof, anti-corrosion, and durability.

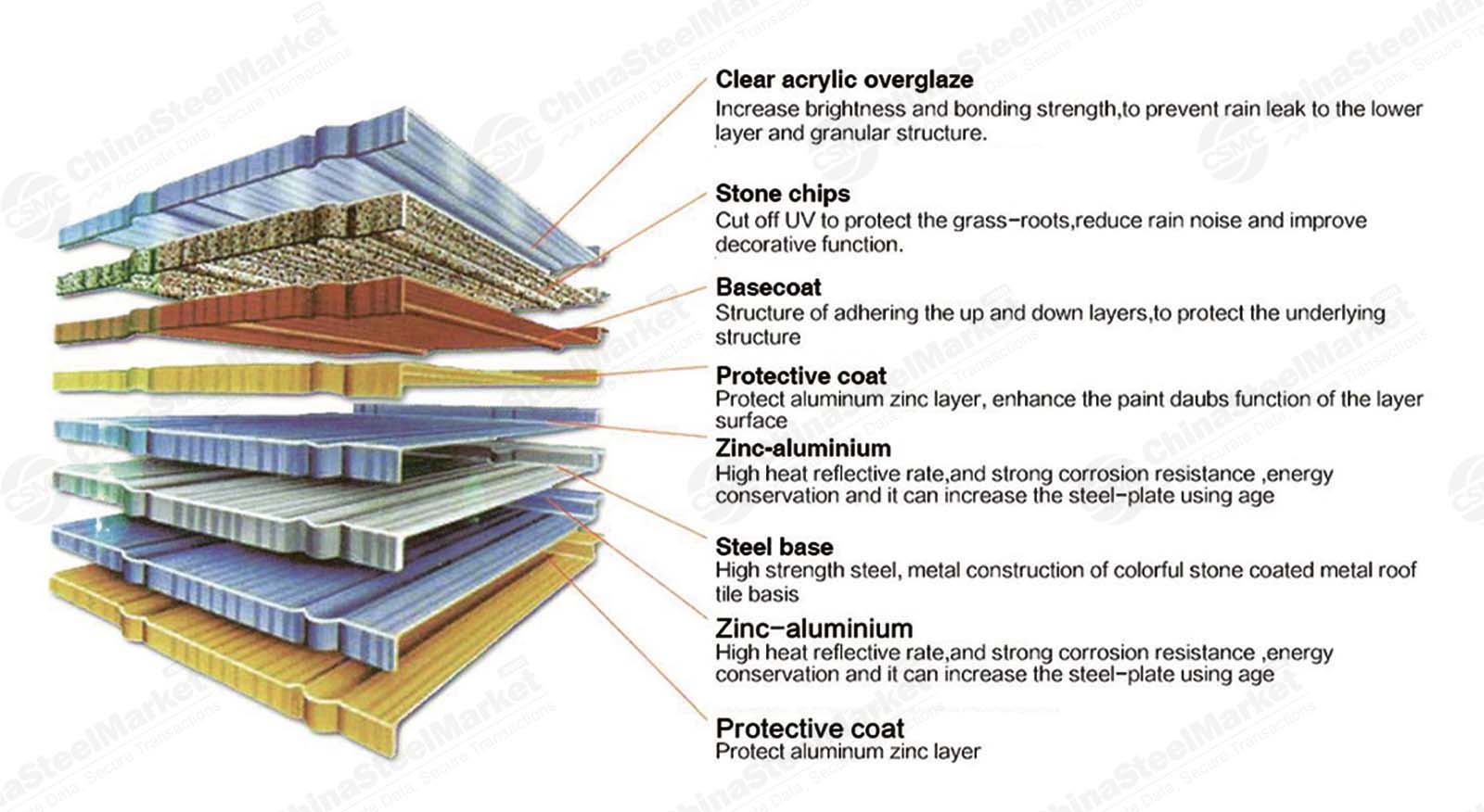

According to the structural diagram of the colored stone metal tile, we can clearly see its structure. The manufacturing process of the colored stone metal tile can be divided into several steps.
1. Workers cut the aluminum-zinc or colored steel plate into suitable sizes.
2. Perform lace punching operations on the cut steel plate. Workers use hydraulic presses to press the mold, press out the pattern, and check whether the pattern is neat and beautiful.
3. Spray resin glue and sandblast for the first drying. After sandblasting and baking, the colored sand has been evenly and firmly adhered to the base plate.
4. Secondary spraying and drying to ensure that the colored sand does not fall off or fade.
5. The finished colored stone metal tile is off the line.

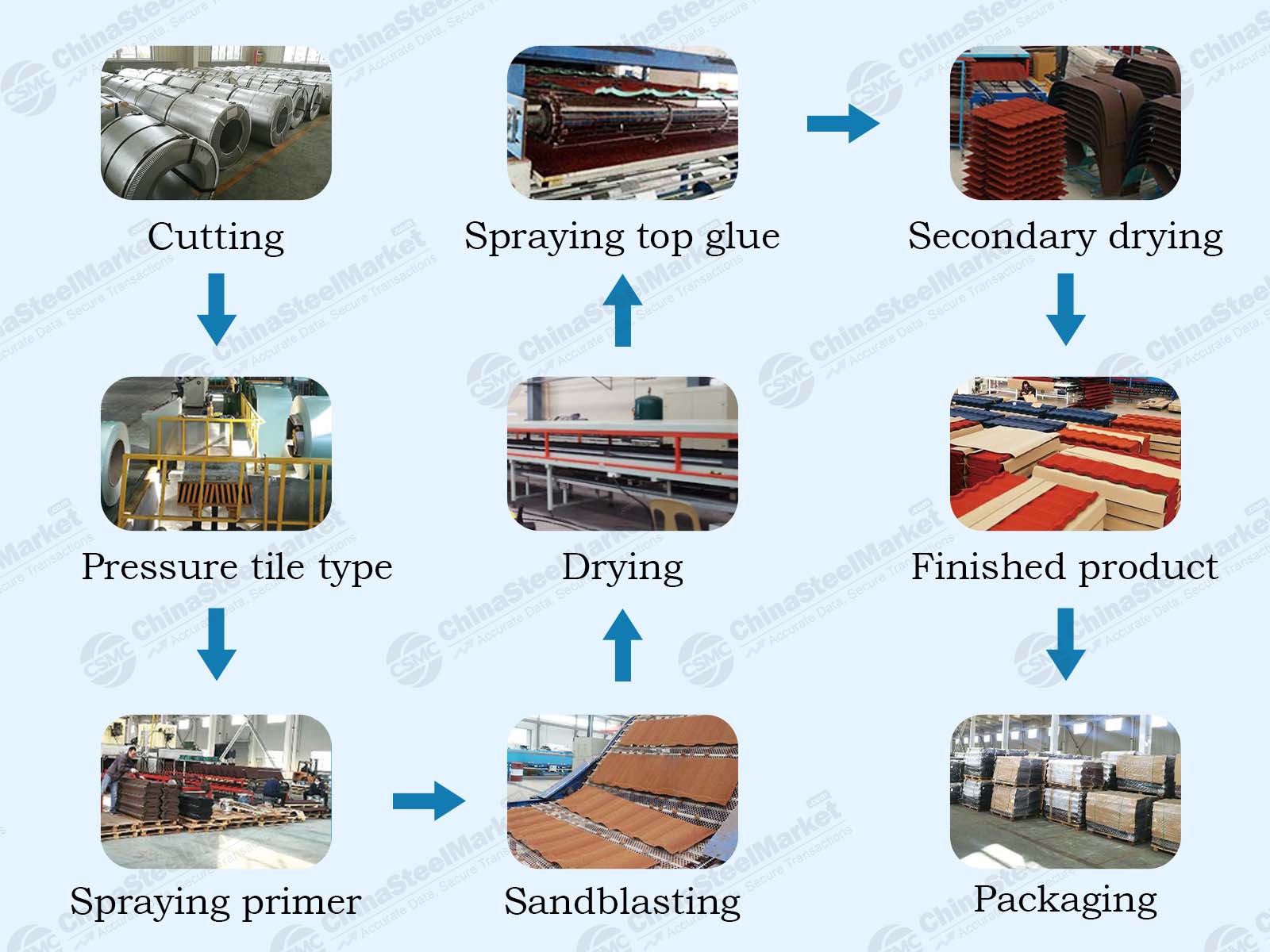

Schematic diagram of the production process of colored stone metal tiles

Colored stone metal tiles use aluminum-zinc-coated steel plates as the base material and have a multi-layer protective film. It allows colored stone metal tiles to withstand severe cold, heavy rain, extreme heat, earthquakes, and other severe climates and natural disasters. Colored stone metal tiles have the advantages of weather resistance, moisture resistance, impact resistance, acid and alkali resistance, heat resistance, and non-flammability. Therefore, its service life is also very long. So it has a superior economy.

In addition, colored stone metal tiles are light and have large areas and simple accessories, so their construction difficulty is very low. Because colored stone tiles are lightweight, they also have earthquake resistance.
The multi-layer structure design of colored stone metal tiles makes them excellent in waterproofing, corrosion resistance, and durability. Colored stone metal tiles combine the strength of metal and the beauty of stone particles and have strong weather resistance and decorative properties. Usually, there are several types of colored stone metal tiles.

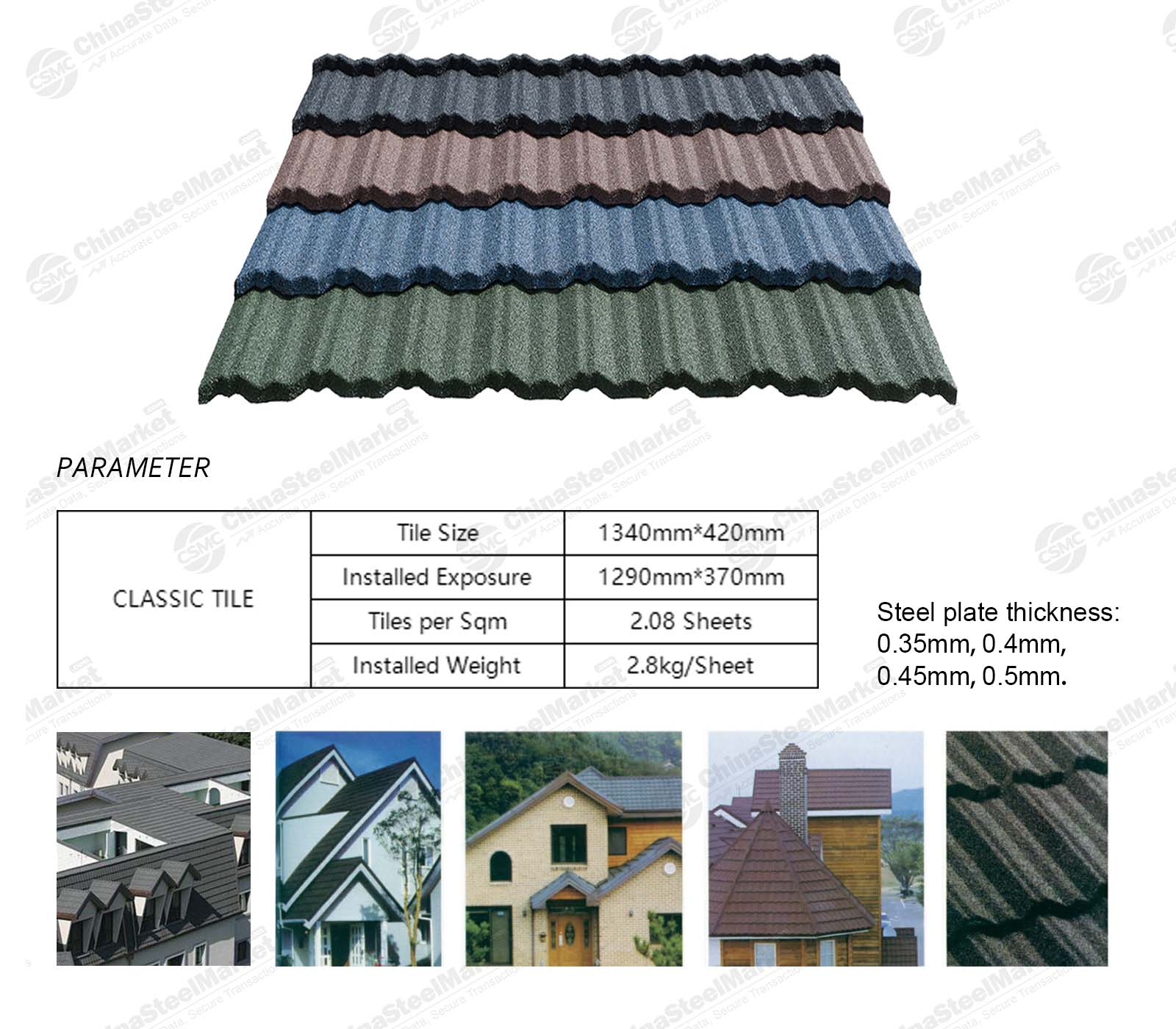

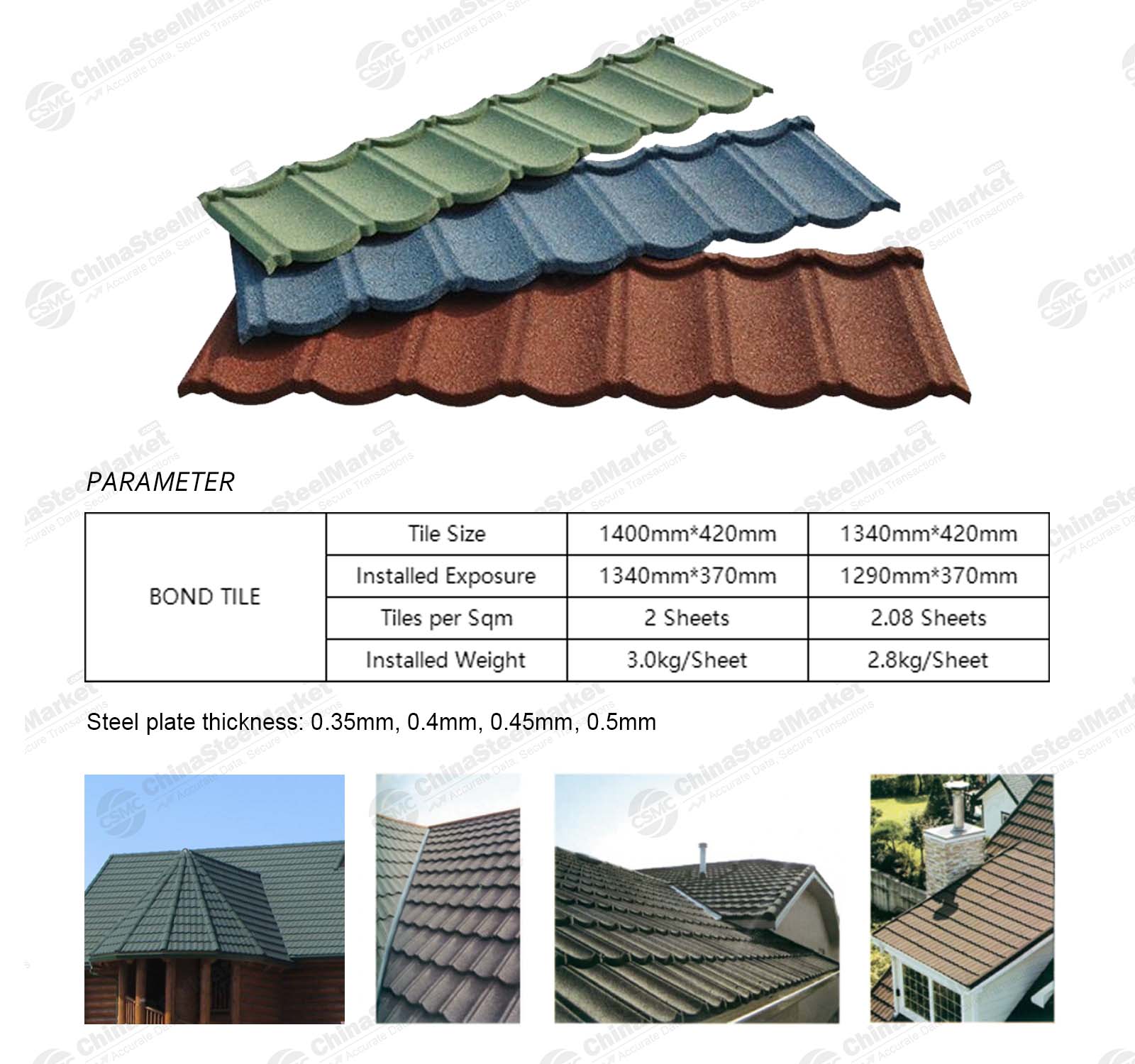

Ⅰ Circular Arc Tiles
Circular arc tile is a classic colored stone metal tile traditional roof tiles with an antique texture, symbolizing roundness and elegance.

Ⅱ Beveled Edge Tiles
Beveled edge tiles (W-shaped) are a type of metal roof tiles that are well-arranged and have a rich texture.

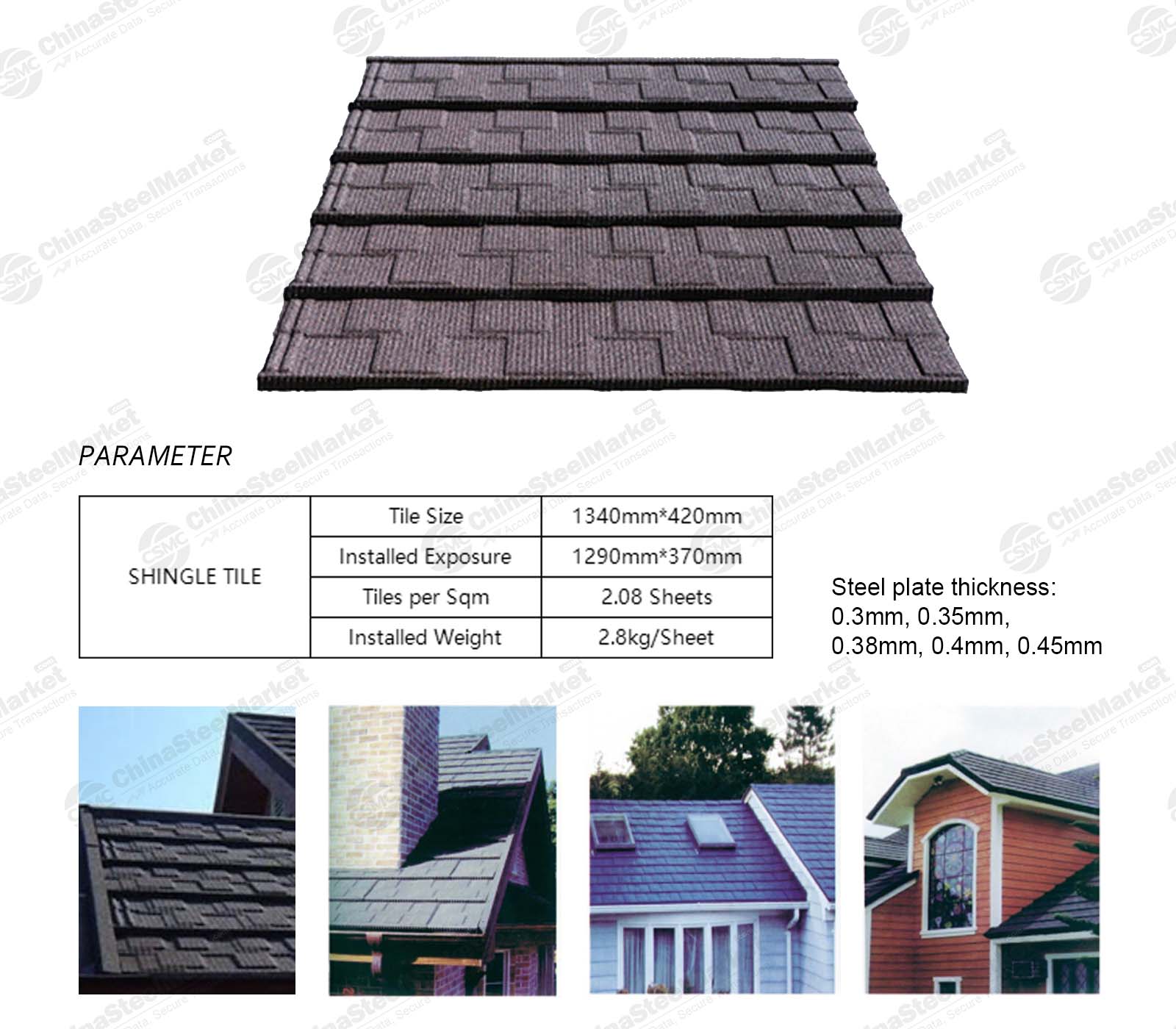

Ⅲ Square Grid Tile
Square grid tile is a colorful and vibrant colored stone metal tile that adds a three-dimensional and infinite sense of motion to the roof.

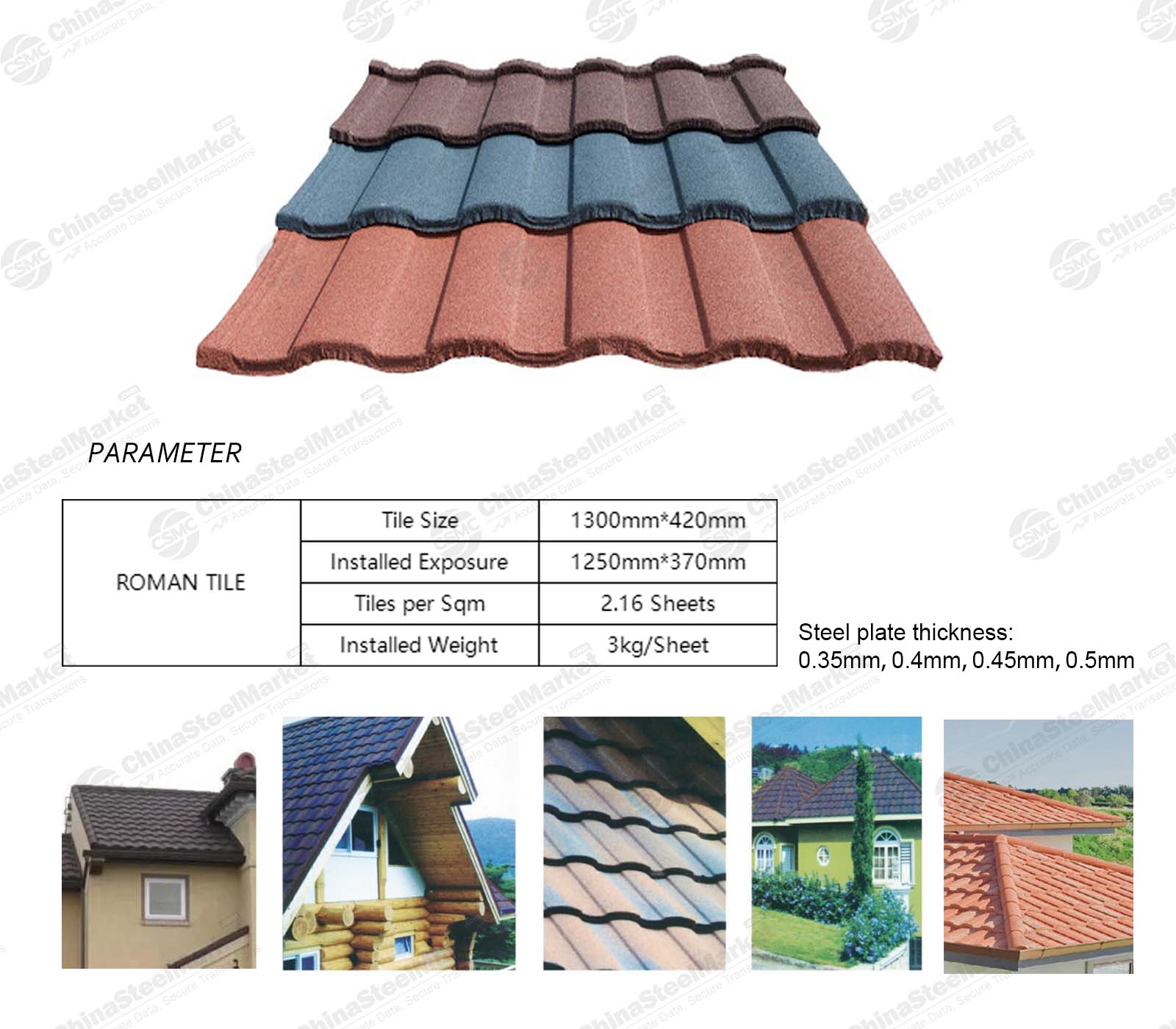

Ⅳ Roman Colored Stone Metal Tiles
Roman-colored stone metal tiles have bright colors and rich colors and are more beautiful and fashionable. There are multiple colors to choose from, making them a common type of roof tile.

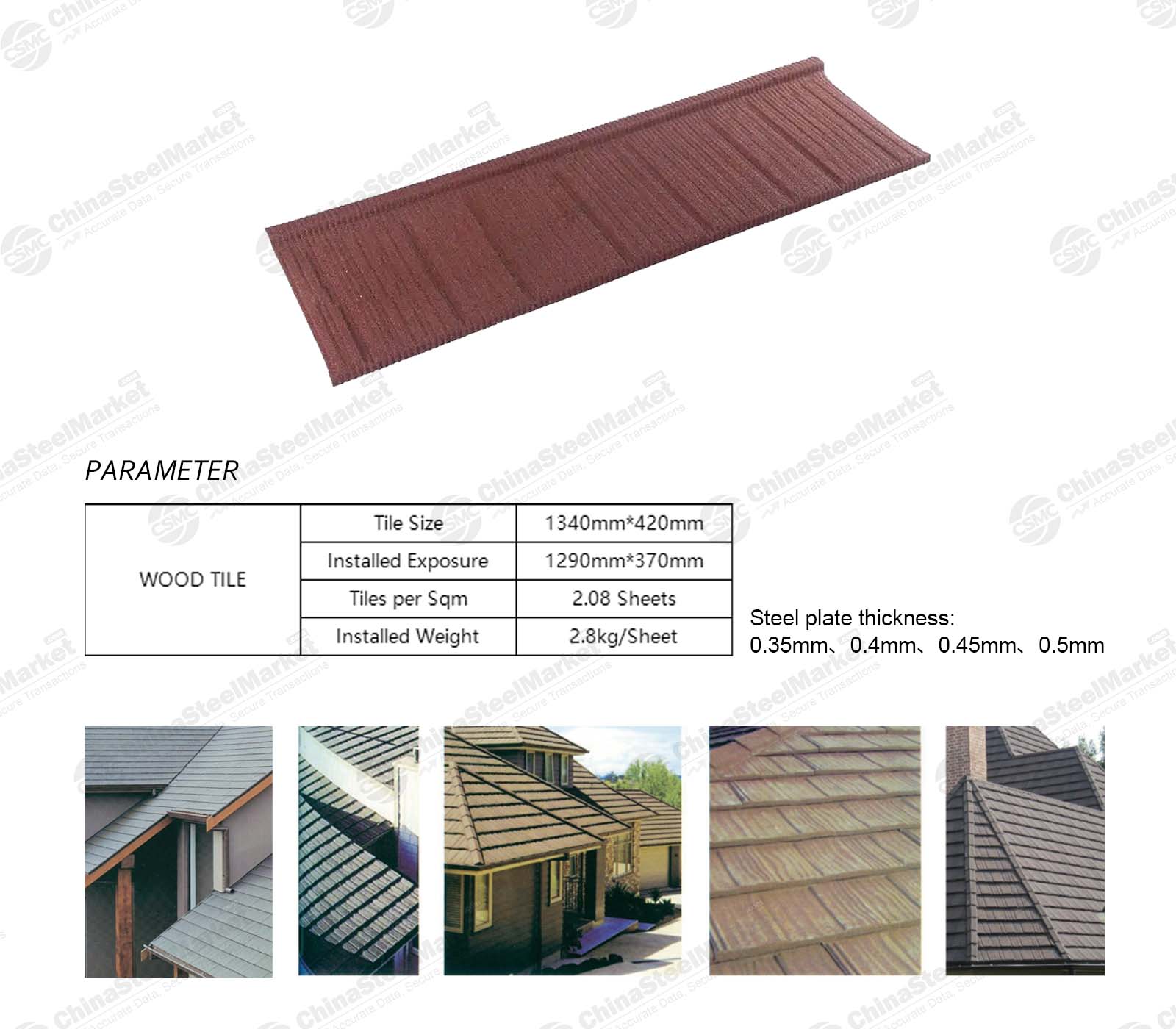

Ⅴ Wood Shake Tile
Wood shake tile is a type of colored stone metal tile with a wood grain shape, showcasing the beauty of harmony and perfectly integrating architecture with nature.

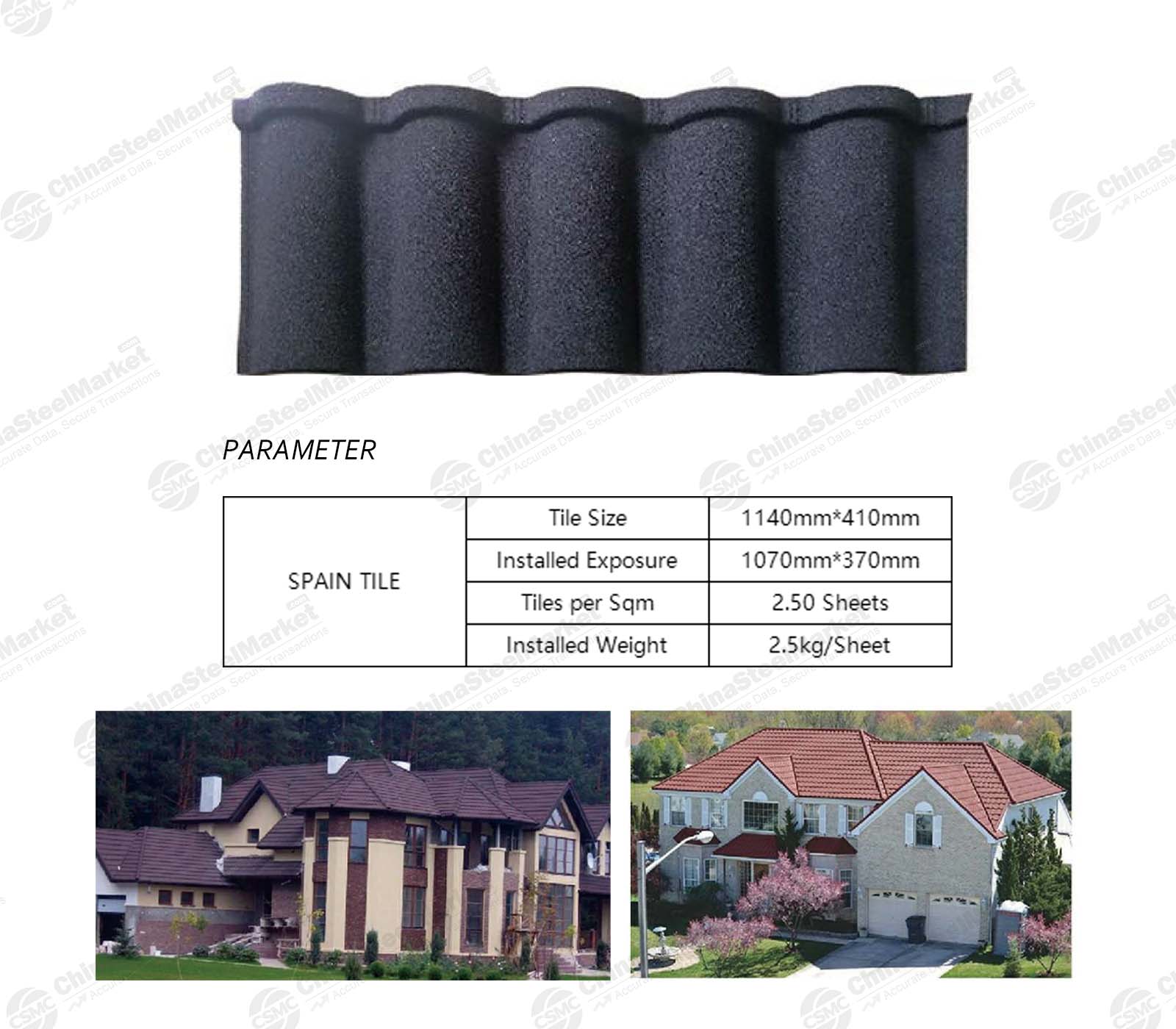

Ⅵ Spanish Tile
Spanish tile has the characteristics and style of the Culture of Spain, which can enhance the overall design of the building.

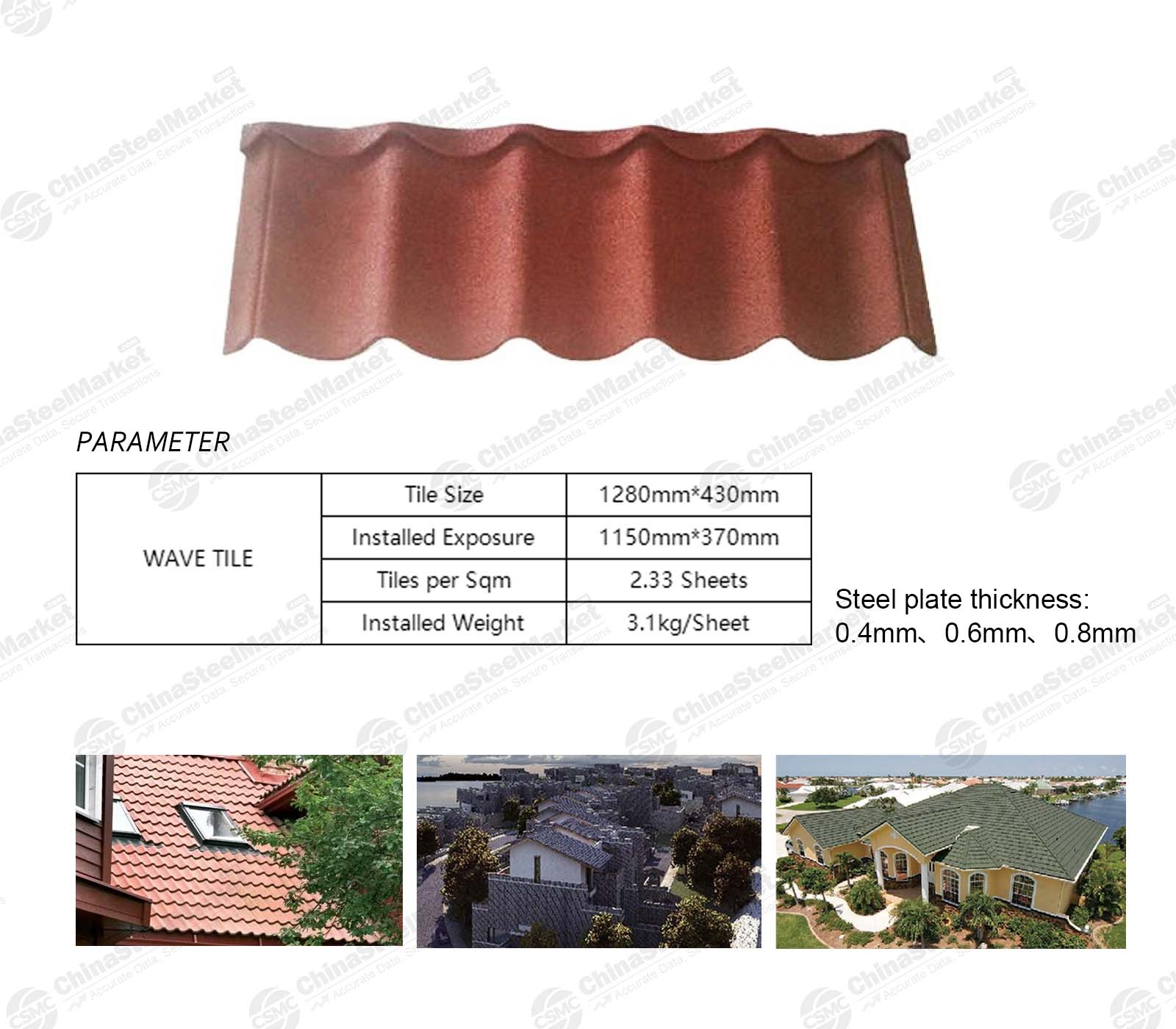

Ⅶ Wave Tile
The wave tile adopts a wavy design, bringing a unique visual effect to the roof.

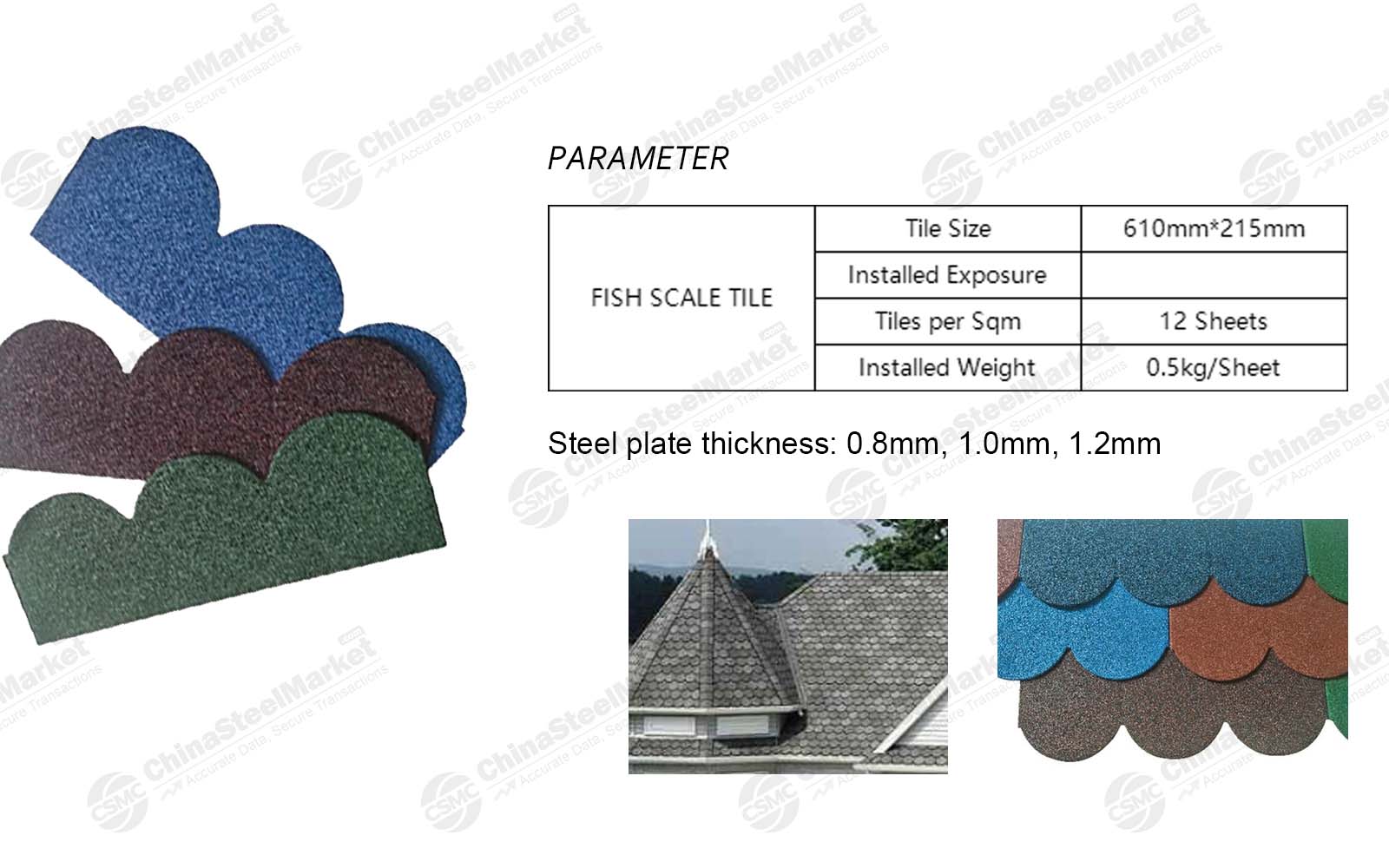

Ⅷ Fish Scale Tile
The fish scale tile adopts a fish scale-shaped design, with the tiles arranged in a staggered manner, adding a three-dimensional sense to the roof and making the building more artistic.

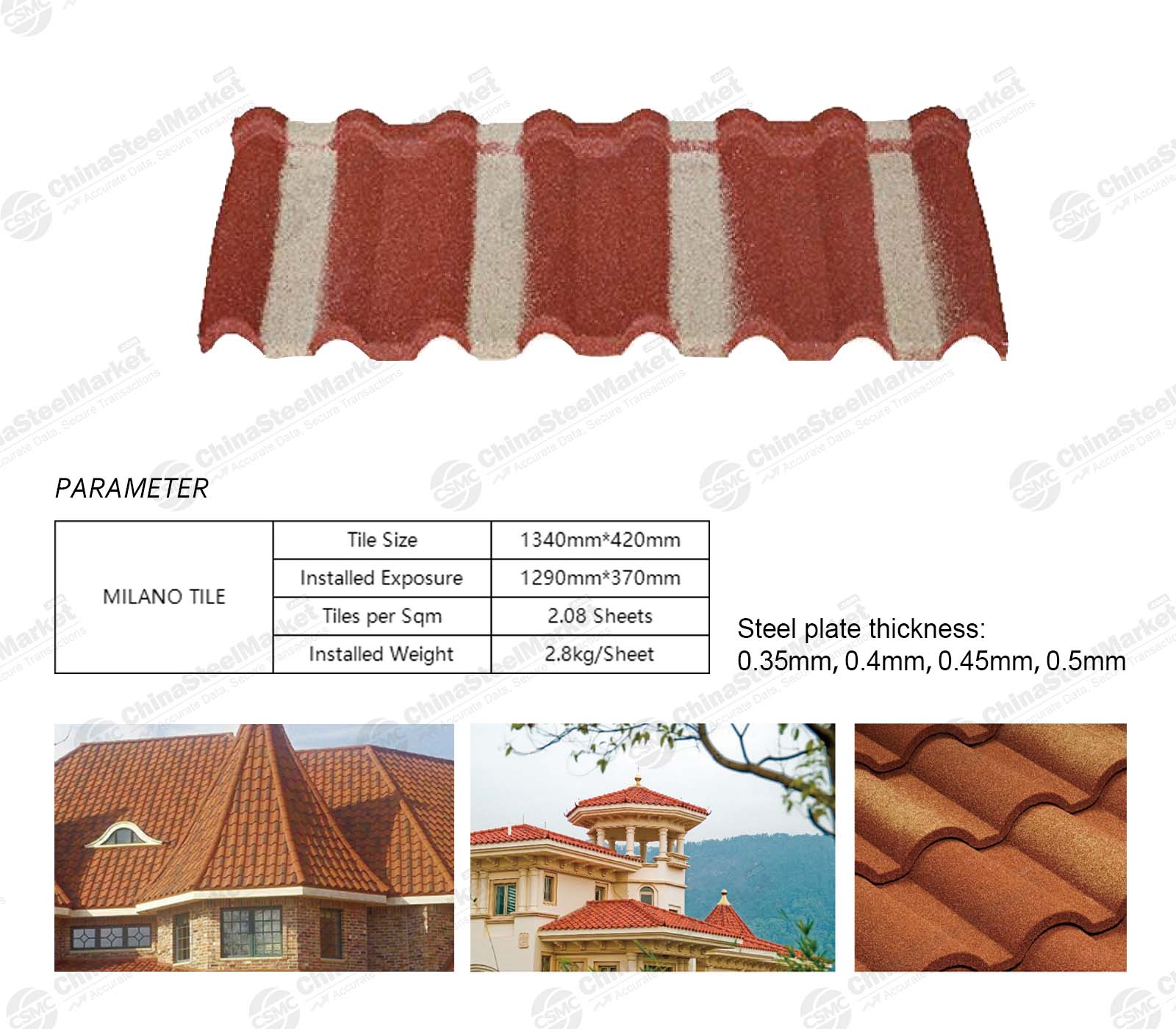

Ⅸ Milano Tile
Milano tile is an elegant antique-style colored stone metal tile with outstanding plasticity and decoration.

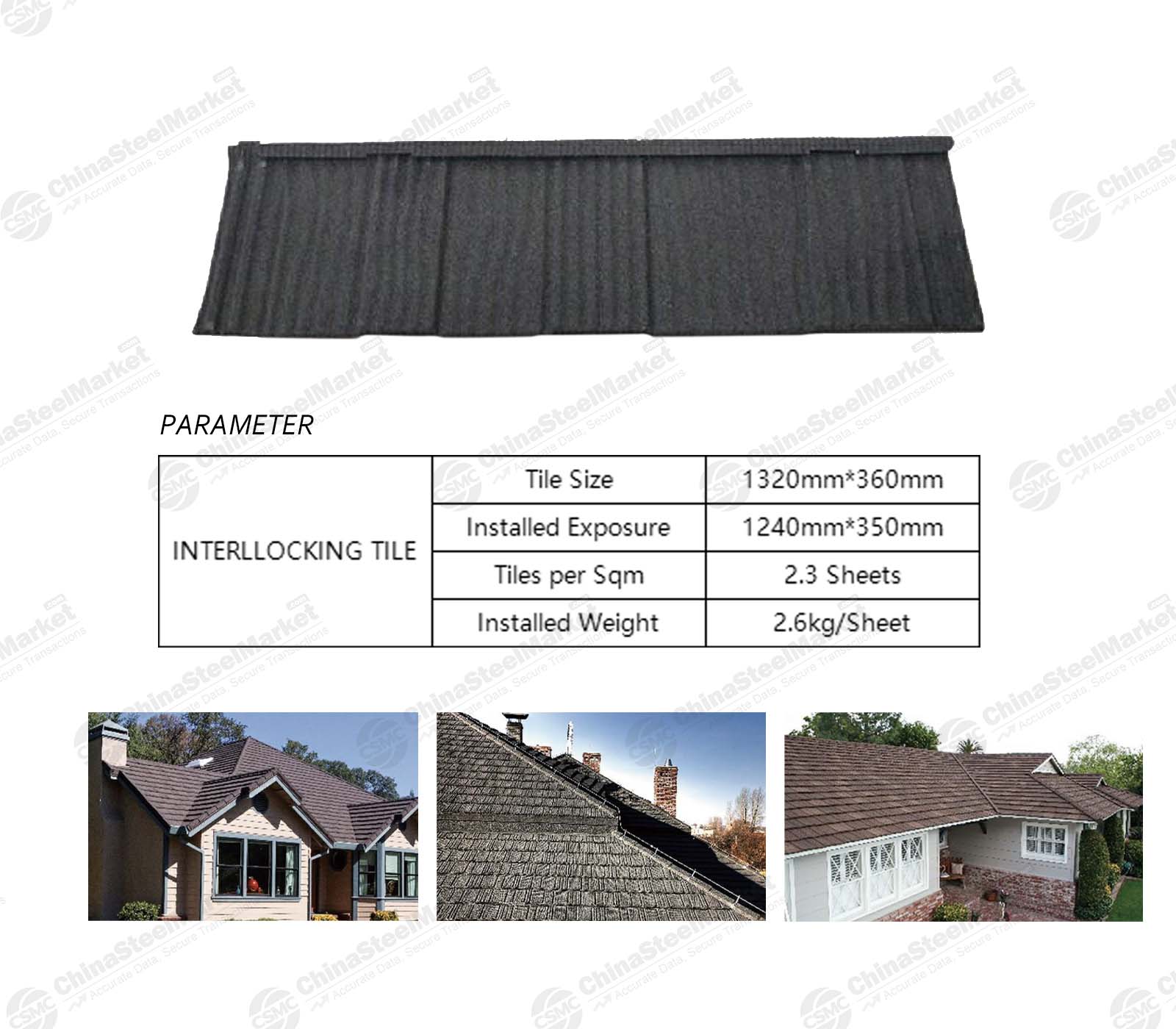

Ⅹ Interlocking Tile
The tile connection of the locked tile adopts a lock design, ensuring a seamless connection between tiles and providing a better waterproof effect.

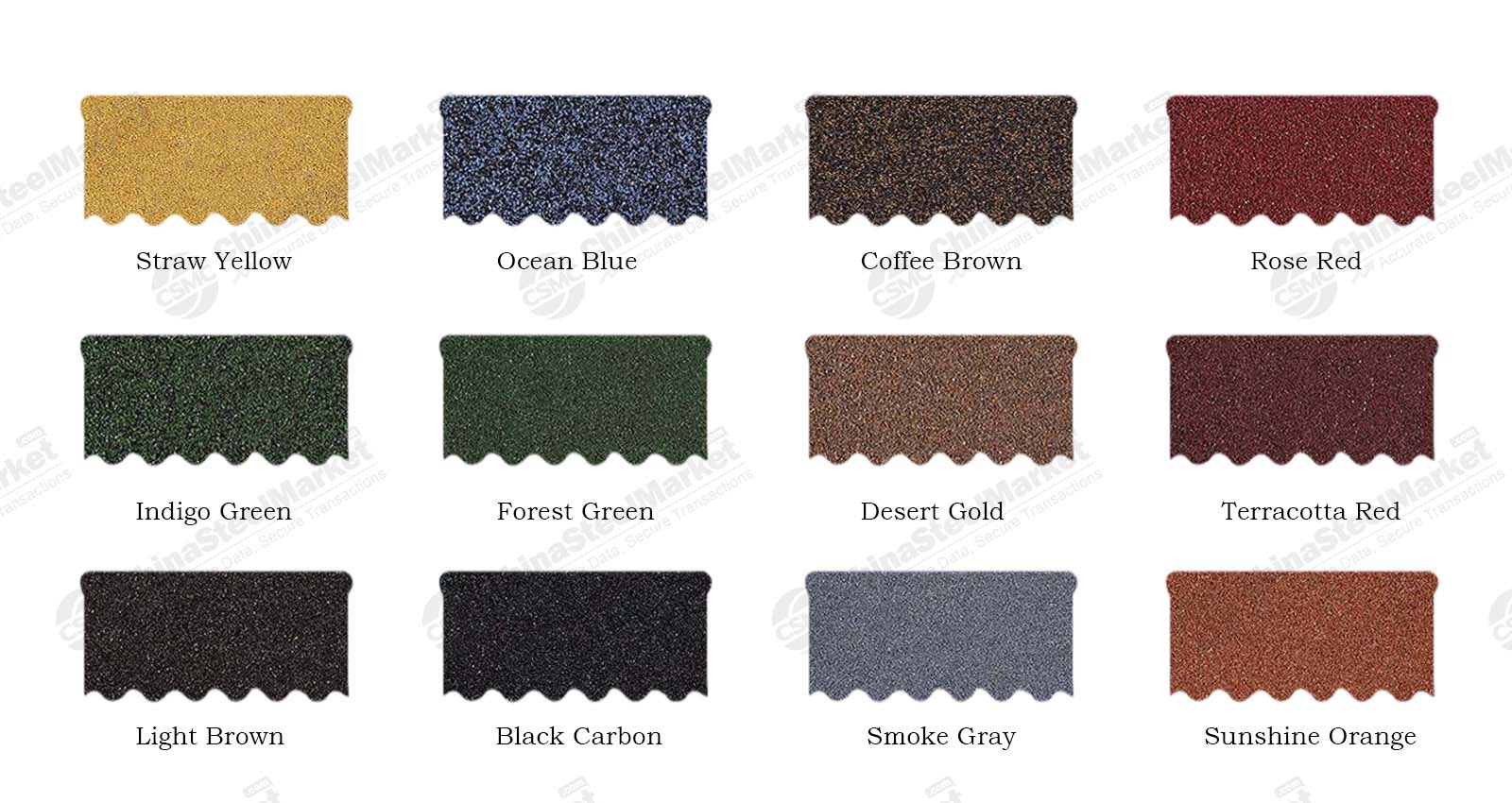

Colored stone metal tiles have various shapes and rich colors. There will be listed some common colors of colored stone metal tiles in the following pictures. Customers can leave messages or send emails to know more about the colors. We will arrange for professional service personnel to answer your questions.

Because of the advantages of colored stone metal tiles, they are widely used in construction. Colored stone tiles will appear on the construction site as various accessories for house construction. CMSC will use pictures and text descriptions to display various accessories.

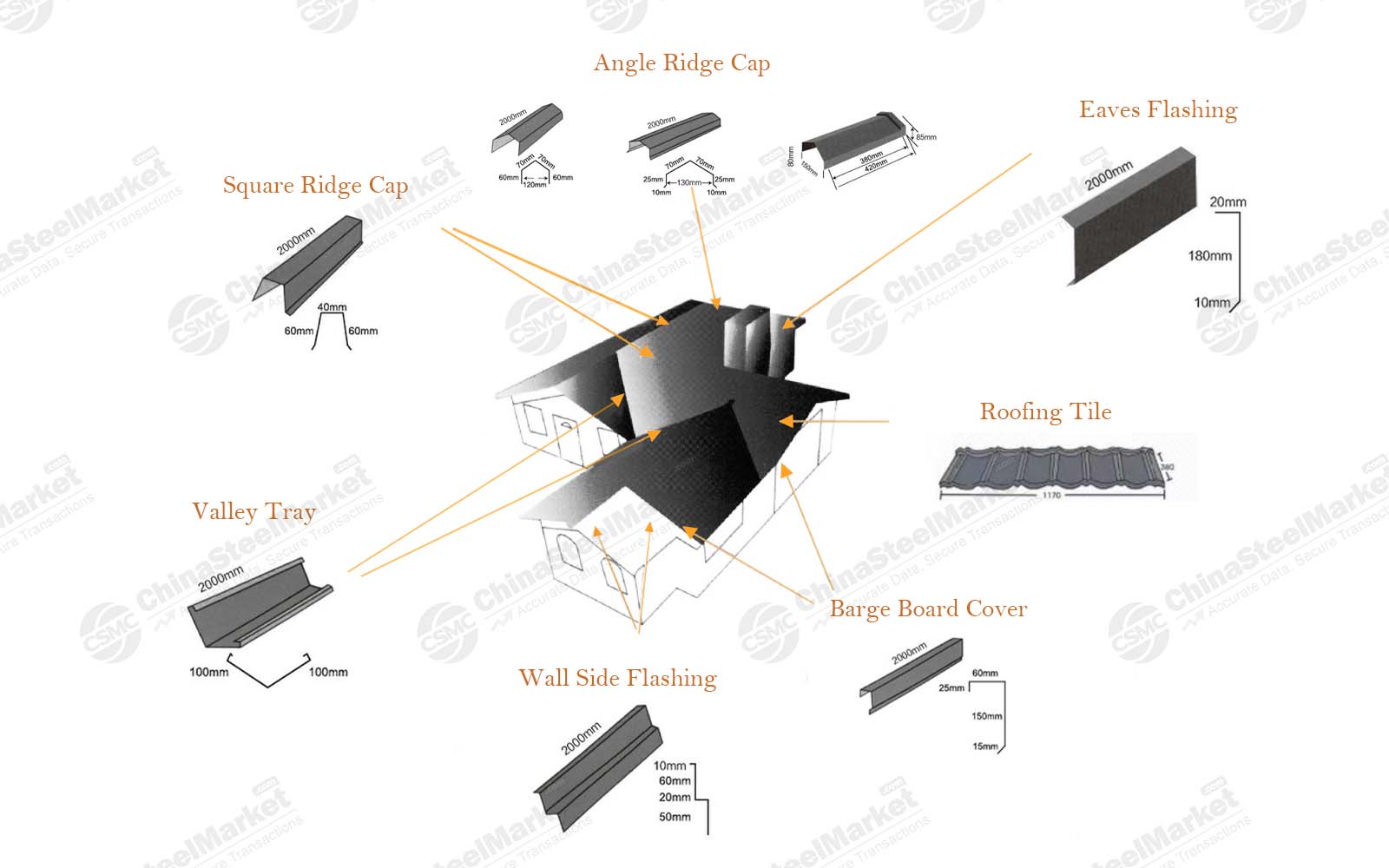

Accessory diagram

As a new type of steel for building houses, stone-coated metal roofing tile has many advantages. Stone-coated metal roofing tile not only has the natural, deep, and excellent decorative properties of traditional clay tile but also has the light, strong, and durable performance of modern metal tile. It is the main trend in the development of international advanced roofing materials. Therefore, it has become a best-selling product in the international trade. During international transportation, most suppliers will use wooden pallets to pack the goods to ensure the safety of the goods.

We sincerely hope that the information we provide can make more beneficial value. In addition, we sincerely invite you to leave valuable comments and advice on our website. We will follow your comments and advice at any time on our website.

CSMC-Empowering small and medium-scale steel purchasing.
